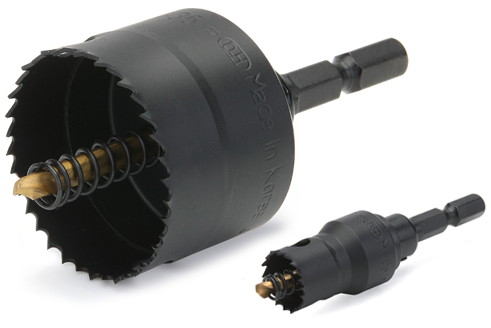

- DH-628DHole Saw for Cordless Driver DrillHOLE SAW FOR CORDLESS DRIVER DRILL
- Material
- High Speed Steel
- Using tools

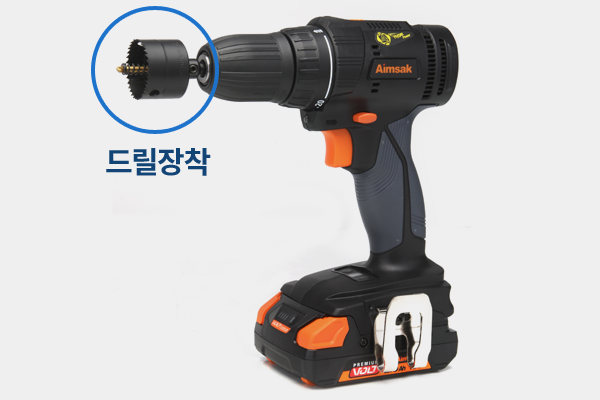

- Cordless driver drill
- Properties
- Excellent in stainless steel work with a cordless driver drill
- Fast in work speed and clean in the perforation surface
- Removable with one touch by a bit shank type
- Cautions
- For the cordless driver drill only with specifications such as the number of rotation around 1,000rpm and rotational torque 100N•m (spin only)
- For the use of a small electric drill with power consumption 400W and under
- Product for a cordless driver drill and possibility of shorter life in case of being used not for a cordless driver drill but for an electric drill with fast rotation speed
- Unavailable for the functions of an impact driver, drilling machine, vibration, and hammer
- Use and materials
- stainless steel plates (1.2㎜ and under), iron plates (3㎜ and under), aluminum, PVC, etc.

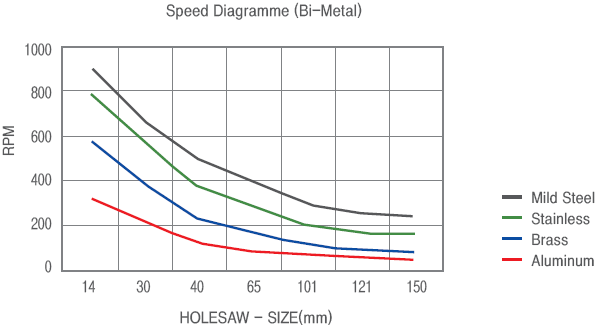

- Reasonable RPM

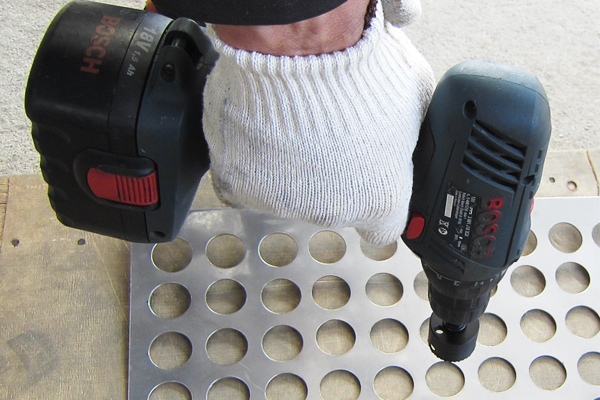

- Working Picture
- Hole Saw Kits

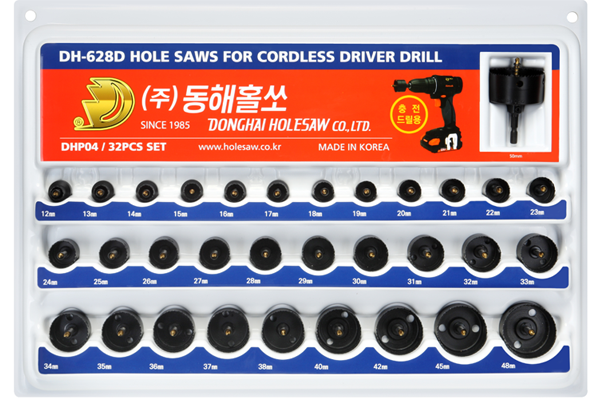

DHP04 (32PC SET)

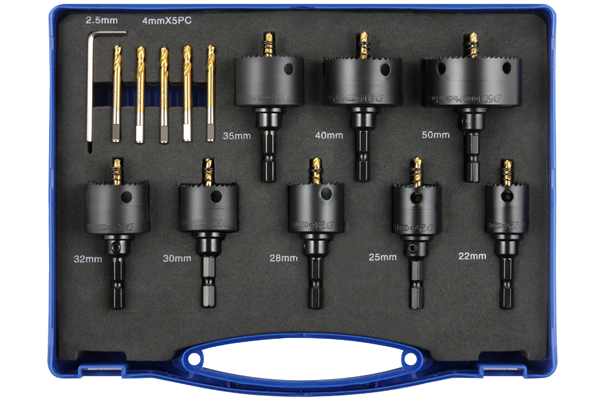

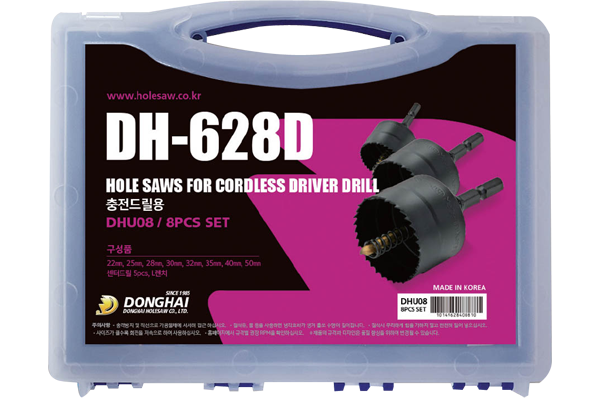

DHU08 (8PC SET)Entrance sizes : 22㎜, 25㎜, 28㎜, 30㎜, 32㎜, 35㎜, 40㎜, 50㎜, 5PC of pilot drills, Hex key wrenches
| Product code | Diameter |
|---|---|
| 628D-012 | Φ12 |
| 628D-013 | Φ13 |
| 628D-014 | Φ14 |
| 628D-015 | Φ15 |
| 628D-016 | Φ16 |
| 628D-017 | Φ17 |
| 628D-018 | Φ18 |
| 628D-019 | Φ19 |
| 628D-020 | Φ20 |
| 628D-021 | Φ21 |
| 628D-022 | Φ22 |
| Product code | Diameter |
|---|---|
| 628D-023 | Φ23 |
| 628D-024 | Φ24 |
| 628D-025 | Φ25 |
| 628D-026 | Φ26 |
| 628D-027 | Φ27 |
| 628D-028 | Φ28 |
| 628D-029 | Φ29 |
| 628D-030 | Φ30 |
| 628D-031 | Φ31 |
| 628D-032 | Φ32 |
| 628D-033 | Φ33 |
| Product code | Diameter |
|---|---|
| 628D-034 | Φ34 |
| 628D-035 | Φ35 |
| 628D-036 | Φ36 |
| 628D-037 | Φ37 |
| 628D-038 | Φ38 |
| 628D-040 | Φ40 |
| 628D-042 | Φ42 |
| 628D-045 | Φ45 |
| 628D-048 | Φ48 |
| 628D-050 | Φ50 |
- Possible for customization about other sizes
