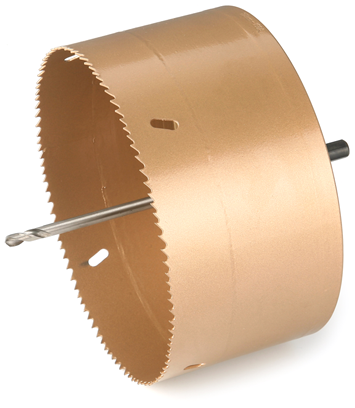

- DH-628SBi-metal Special Long Hole SawBI-METAL SPECIAL LONG HOLESAW
- Use in the perforation of manifolds such as double-walled pipes, PVC drain pipes, PE pipes, etc.
- Use in the work of curves of pipes because the cutting length was manufactured 90㎜ and more

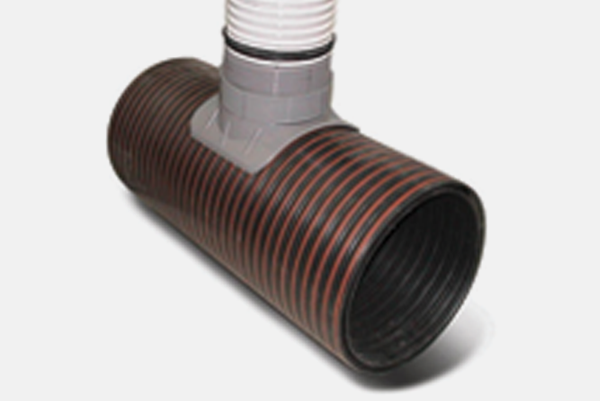

- Hole Saw for Branch Pipe
Possible for customization about other sizes
- PVC drain pipes & PE pipes

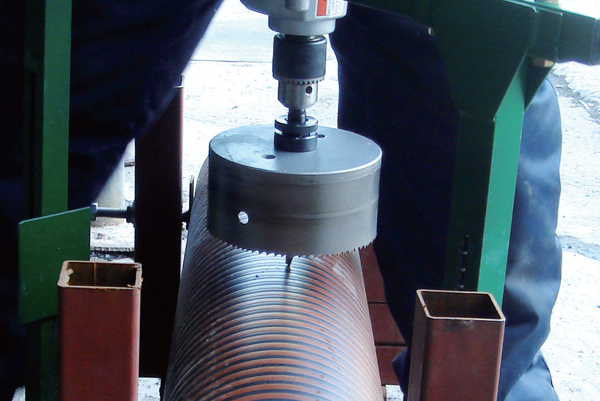

1. Perforation work

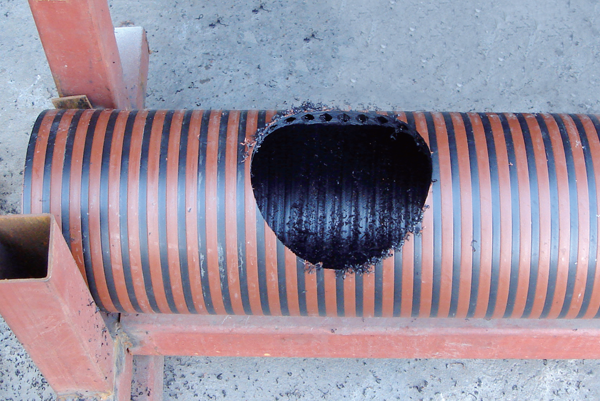

2. After perforation

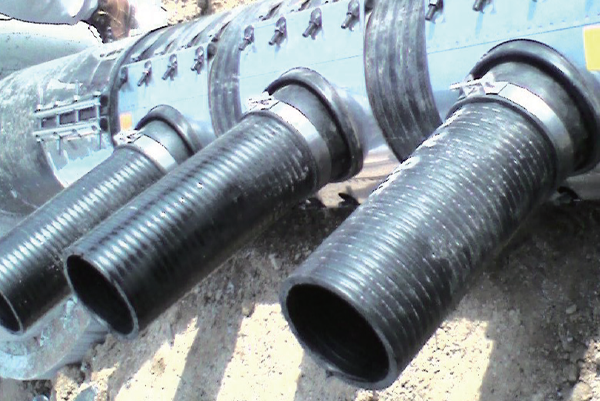

3. Link with pipes
4. Completion
| Product code | Dia.(D) | Length(L) |
|---|---|---|
| 628S-021 | Φ21 | 120㎜ |
| 628S-022 | Φ22 | 110㎜ |
| 628S-025 | Φ25 | 110㎜ |
| 628S-028 | Φ28 | 110㎜ |
| 628S-030 | Φ30 | 110㎜ |
| 628S-032 | Φ32 | 110㎜ |
| 628S-035 | Φ35 | 110㎜ |
| 628S-036 | Φ36 | 110㎜ |
| 628S-038 | Φ38 | 110㎜ |
| 628S-040 | Φ40 | 110㎜ |
| 628S-042 | Φ42 | 110㎜ |
| 628S-045 | Φ45 | 110㎜ |
| 628S-050 | Φ50 | 110㎜ |
| 628S-055 | Φ55 | 110㎜ |
| 628S-060 | Φ60 | 110㎜ |
| 628S-065 | Φ65 | 110㎜ |
| 628S-070 | Φ70 | 110㎜ |
| Product code | Dia.(D) | Length(L) |
|---|---|---|
| 628S-080 | Φ80 | 110㎜ |
| 628S-100 | Φ100 | 90㎜ |
| 628S-105 | Φ105 | 90㎜ |
| 628S-110 | Φ110 | 90㎜ |
| 628S-115 | Φ115 | 90㎜ |
| 628S-120 | Φ120 | 90㎜ |
| 628S-125 | Φ125 | 90㎜ |
| 628S-130 | Φ130 | 90㎜ |
| 628S-135 | Φ135 | 90㎜ |
| 628S-140 | Φ140 | 90㎜ |
| 628S-145 | Φ145 | 90㎜ |
| 628S-150 | Φ150 | 90㎜ |
| 628S-155 | Φ155 | 90㎜ |
| 628S-160 | Φ160 | 90㎜ |
| 628S-165 | Φ165 | 90㎜ |
| 628S-167 | Φ167 | 90㎜ |
| 628S-170 | Φ170 | 90㎜ |
| Product code | Dia.(D) | Length(L) |
|---|---|---|
| 628S-175 | Φ175 | 90㎜ |
| 628S-178 | Φ178 | 90㎜ |
| 628S-180 | Φ180 | 90㎜ |
| 628S-185 | Φ185 | 90㎜ |
| 628S-190 | Φ190 | 90㎜ |
| 628S-195 | Φ195 | 90㎜ |
| 628S-200 | Φ200 | 90㎜ |
| 628S-205 | Φ205 | 90㎜ |
| 628S-210 | Φ210 | 90㎜ |
| 628S-218 | Φ218 | 90㎜ |
| 628S-220 | Φ220 | 90㎜ |
| 628S-230 | Φ230 | 110㎜ |
| 628S-250 | Φ250 | 110㎜ |
| 628S-270 | Φ270 | 100㎜ |
| 628S-280 | Φ280 | 130㎜ |
| 628S-300 | Φ300 | 100㎜ |
| 628S-330 | Φ330 | 100㎜ |
- Possible for customization about other sizes
