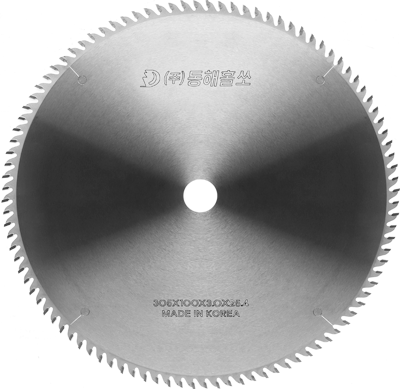

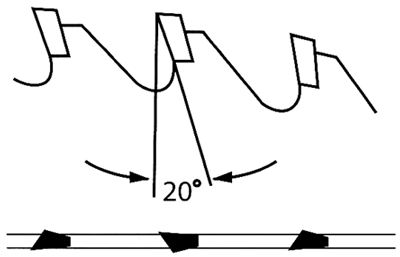

- DH-211 T.C.T. Saw BladeFor wood (TR type)
- Use : The cut surface is excellent. It is possible to use wood effectively by powerful cutting. It is used for rip sawing of construction wood materials.
- Machines : Table circular saw machine, gang rip saw machine
| External diameter | Blade number | Thickness | Internal diameter | |
|---|---|---|---|---|
| 7-1/4“ | 184㎜ | 60T | 2.4T | 19㎜ |
| 8“ | 203㎜ | 80T | 2.4T | 25.4㎜ |
| 100T | ||||
| 9“ | 230㎜ | 60T | 2.4T | 25.4㎜ |
| 80T | ||||
| 100T | ||||
| 10" | 255㎜ | 80T | 2.4T | 25.4㎜ |
| 100T | ||||
| 120T | ||||
| 12“ | 305㎜ | 80T | 3.0T | 25.4㎜ |
| 100T | ||||
| 120T | ||||
| 14" | 355㎜ | 60T | 3.0T | 25.4㎜ |
| 80T | ||||
| 100T | ||||
| 120T | ||||
- Possible for customization about other sizes

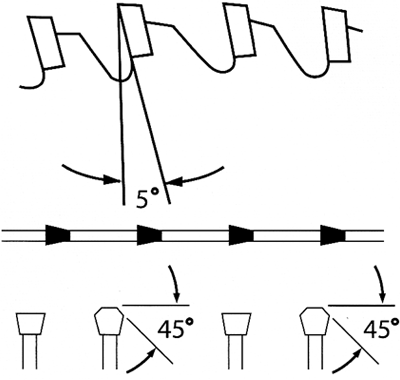

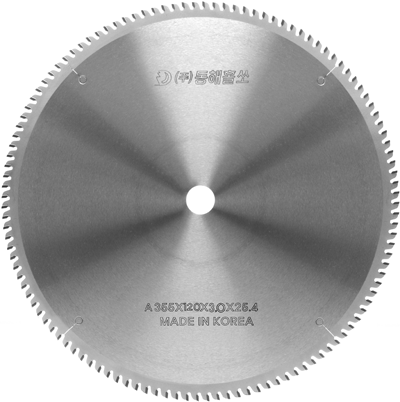

- DH-211 T.C.T. Saw BladeFor aluminum (A type)
- Use : It is used to cut and process comparatively hard substances vertically and horizontally such as synthetic resins as well as aluminum or other nonferrous metals. And, it can be used if low noise and clean cut surface are wanted.
- Machine : Table circular taw machine
| External diameter | Blade number | Thickness | Internal diameter | |
|---|---|---|---|---|
| 7-1/4“ | 184㎜ | 60T | 2.4T | 19㎜ |
| 8“ | 203㎜ | 80T | 2.0T | 25.4㎜ |
| 10" | 255㎜ | 100T | 2.4T | 25.4㎜ |
| 120T | ||||
| 12“ | 305㎜ | 100T | 3.0T | 25.4㎜ |
| 120T | ||||
| 14" | 355㎜ | 60T | 3.0T | 25.4㎜ |
| 80T | ||||
| 100T | ||||
| 120T | ||||
| 10" | 255㎜ | 100T | 2.4T | 25.4㎜ |
| 120T | ||||
| 12“ | 305㎜ | 100T | 3.0T | 25.4㎜ |
| 120T | ||||
| 16“ | 405㎜ | 60T | 3.0T | 25.4㎜ |
| 120T | ||||
- Possible for customization about other sizes

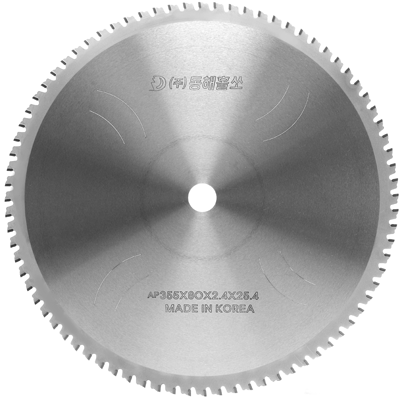

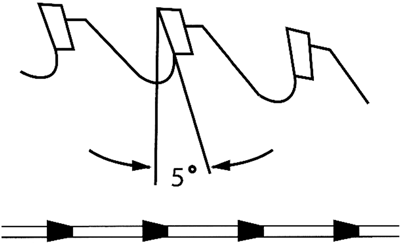

- DH-211 T.C.T. Saw BladeFor panel metal (AP type)
- Use : for the work of sandwich panels
- Machine : Table circular saw machine
| External diameter | Blade number | Thickness | Internal diameter | |
|---|---|---|---|---|
| 7-1/4“ | 184㎜ | 32T | 2.4T | 19㎜ |
| 9“ | 230㎜ | 36T | 2.4T | 25.4㎜ |
| 10“ | 255㎜ | 36T | 2.4T | 25.4㎜ |
| 14“ | 355㎜ | 80T | 2.4T | 25.4㎜ |
- Possible for customization about other sizes

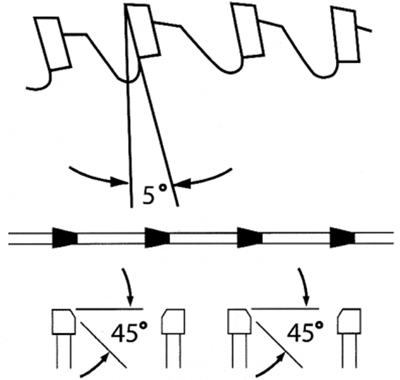

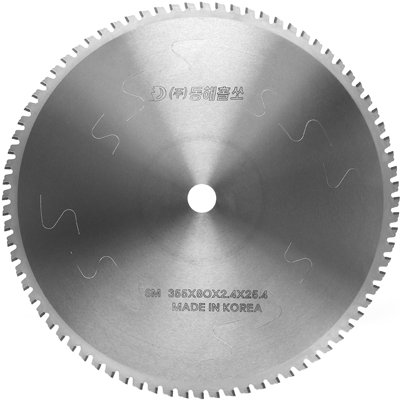

- DH-211 T.C.T. Saw BladeFor metal (SM type)
- Use : For steel and nonferrous metal
- Car parts (factory of car parts)
- Pipes (factory of mass cutting of pipes)
- Use in cutting round bars and angles
| External diameter | Blade number | Thickness | Internal diameter | |
|---|---|---|---|---|
| 12“ | 305㎜ | 80T | 2.4T | 25.4㎜ |
| 14“ | 355㎜ | 80T | 2.4T | 25.4㎜ |
- Possible for customization about other sizes
