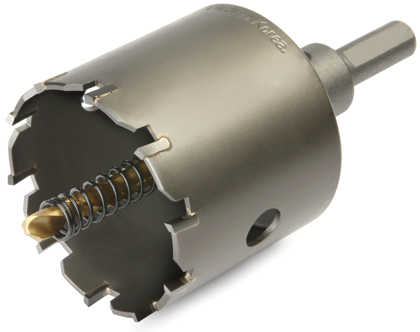

- DH-412LCarbide Tipped
Long Hole SawT.C.T. LONG HOLESAW
- Material
- Using tools
- Rotary electric drills (hand drills)
- Drill presses
- Magnetic drill presses
- Various machine tools
- Properties
- Carbide hole saws are for stainless steel plates. The plates are cut sharply.
- Simultaneously, the saws have excellent durability.
- Possible for simple drill work until 4㎜ in depth about thin stainless steel plates and metal plates
- It is faster than a HSS hole saw. The plates are cut sharply.
- By outstanding durability, the materials are cut cleanly.
- Loading of an ejector spring for the protection of a carbide tip and smooth emission of chips
- Cautions
- In installing the chuck of an electric drill, match the eccentricity well.
- Do not swing the saw from side to side or do not twist it in drilling work.
- Do not do consecutive work in a state of applying force compulsorily.
- Unavailable for not flat surfaces but bumpy parts and pipes (steel pipes, stainless steel pipes, etc.)
- Effective when cutting oil is used on the working part
- Please be careful that the hole saw does not drastically touch a processing matter after the penetration of the pilot drill (damage to the carbide tip due to a shock)
- In consecutive work, maintain low speed. It should be used fitting to the rotation speed according to workpieces.
- It should be used in low speed as the size of hole saws becomes bigger.
- Use and materials
- Possible for drill work about tiles, gypsum boards, asbestos plates, artificial marble (~4㎜), etc.
- Power distribution boards, operating panels, control panels, stainless steel plates, FRP, cast iron slabs, aluminum plates, zinc iron plates, etc.

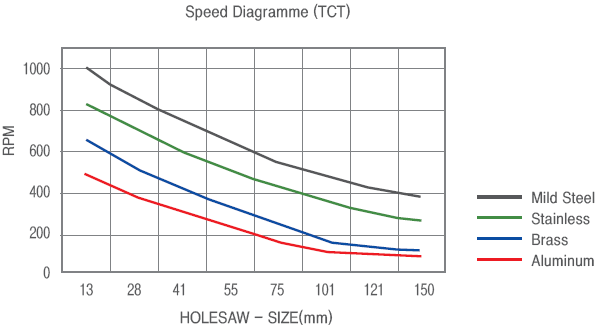

- Reasonable RPM
| Product code |
Diameter |
| 412L-013 |
Φ13 |
| 412L-014 |
Φ14 |
| 412L-015 |
Φ15 |
| 412L-016 |
Φ16 |
| 412L-017 |
Φ17 |
| 412L-018 |
Φ18 |
| 412L-019 |
Φ19 |
| 412L-020 |
Φ20 |
| 412L-021 |
Φ21 |
| 412L-022 |
Φ22 |
| 412L-023 |
Φ23 |
| 412L-024 |
Φ24 |
| 412L-025 |
Φ25 |
| 412L-026 |
Φ26 |
| 412L-027 |
Φ27 |
| 412L-028 |
Φ28 |
| 412L-029 |
Φ29 |
| 412L-030 |
Φ30 |
| 412L-031 |
Φ31 |
| 412L-032 |
Φ32 |
| 412L-033 |
Φ33 |
| 412L-034 |
Φ34 |
| 412L-035 |
Φ35 |
| 412L-036 |
Φ36 |
| 412L-037 |
Φ37 |
| 412L-038 |
Φ38 |
| 412L-039 |
Φ39 |
| 412L-040 |
Φ40 |
| 412L-041 |
Φ41 |
| Product code |
Diameter |
| 412L-042 |
Φ42 |
| 412L-043 |
Φ43 |
| 412L-044 |
Φ44 |
| 412L-045 |
Φ45 |
| 412L-046 |
Φ46 |
| 412L-047 |
Φ47 |
| 412L-048 |
Φ48 |
| 412L-049 |
Φ49 |
| 412L-050 |
Φ50 |
| 412L-051 |
Φ51 |
| 412L-052 |
Φ52 |
| 412L-053 |
Φ53 |
| 412L-054 |
Φ54 |
| 412L-055 |
Φ55 |
| 412L-056 |
Φ56 |
| 412L-057 |
Φ57 |
| 412L-058 |
Φ58 |
| 412L-059 |
Φ59 |
| 412L-060 |
Φ60 |
| 412L-061 |
Φ61 |
| 412L-062 |
Φ62 |
| 412L-063 |
Φ63 |
| 412L-064 |
Φ64 |
| 412L-065 |
Φ65 |
| 412L-066 |
Φ66 |
| 412L-067 |
Φ67 |
| 412L-068 |
Φ68 |
| 412L-069 |
Φ69 |
| Product code |
Diameter |
| 412L-070 |
Φ70 |
| 412L-075 |
Φ75 |
| 412L-078 |
Φ78 |
| 412L-080 |
Φ80 |
| 412L-085 |
Φ85 |
| 412L-090 |
Φ90 |
| 412L-095 |
Φ95 |
| 412L-100 |
Φ100 |
| 412L-105 |
Φ105 |
| 412L-110 |
Φ110 |
| 412L-115 |
Φ115 |
| 412L-120 |
Φ120 |
| 412L-125 |
Φ125 |
| 412L-130 |
Φ130 |
| 412L-135 |
Φ135 |
| 412L-140 |
Φ140 |
| 412L-145 |
Φ145 |
| 412L-150 |
Φ150 |
| 412L-155 |
Φ155 |
| 412L-160 |
Φ160 |
| 412L-165 |
Φ165 |
| 412L-170 |
Φ170 |
| 412L-175 |
Φ175 |
| 412L-180 |
Φ180 |
| 412L-185 |
Φ185 |
| 412L-190 |
Φ190 |
| 412L-195 |
Φ195 |
| 412L-200 |
Φ200 |
- Possible for customization about other sizes
